LED LIGHTING SOLUTIONS

Installation Guide for Copper choke model :

  • ​​Step One : Remove the Starter
  • Step Two : Remove or short the Copper ballast.
  • Apply Phase at one end and Neutral other end for the T8 LED .

Benefits :

  • ​Energy savings of up to 60 % (compared to T8 fluorescent lamp )
  • ​​Extra-long life of 40,000 hours.
  • ​Type of protection: IP20.
  • Integrated driver with high power factor.
  • ​​Uniform illumination

Application :

  • Textile Industry
  • ​Supermarket & Departmental Stores
  • ​Parking lots / covered car parks
  • ​​Illumination of production areas

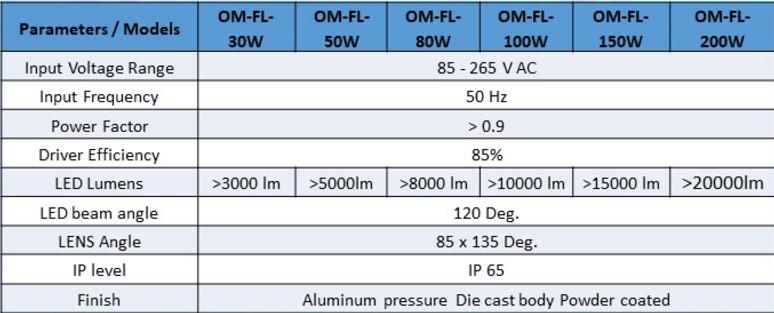

Electrical Specification :

Installation Guide for Copper Choke model :

Installation Guide for Electronic Choke model :

Installation Guide for Electronic Choke model :

  • ​​Step One : Remove the Electronic Choke
  • Apply Phase at one end and Neutral other end for the LED Tube.

LED Tube Light :

The Next generation Power saving LED tube lights.


The OMTRONICS LED tube integrates a LED light source into a traditional fluorescent form factor. Its unique design creates a perfectly uniform visual appearance which cannot be distinguished from traditional fluorescent.


Only 60% energy consumption compared to fluorescent tubes. Retrofit to existing T8 lamps on EM ballast installations._ Extremely break resistant thanks to aluminum heat sink and fully insulated polycarbonate cover
